WIRED viper 72V AWD

WIRED viper 72V

20" AWD Powerhouse

20" AWD Powerhouse

The Wired Viper takes everything that makes the Predator legendary—and compresses it into a 20″ step-through powerhouse. Powered by the same dual-motor 72V AWD powertrain, the Viper delivers brutal, instant acceleration with mechanical torque that hits harder where it counts. Nothing else delivers like the Viper. With identical motors, controllers, and batteries as the Predator, the Viper’s 20″ wheel platform unlocks up to ~30% more effective torque at the ground, translating to explosive launches, relentless hill-climbing, and unmatched low-speed control. With a staggering 430Nm of torque, the Viper is literally the most powerful PPB in the world.
Built for riders who demand maximum traction, maximum torque, and maximum control, the Viper doesn’t rely on size to dominate. It relies on physics. Smaller wheels. Bigger bite. Same all-wheel-drive brutality with the convenience of a step-through. This isn’t a toned-down Predator. It’s the 20″ Powerhouse—engineered to strike faster, pull harder, and dominate terrain with surgical precision. This is Predator-class power—refined into a more compact, confidence-inspiring form.

8000w

PEAK POWER

50+ MPH

Top speed

72V

DUAL BATTERY SYSTEM

430Nm

Combined torque

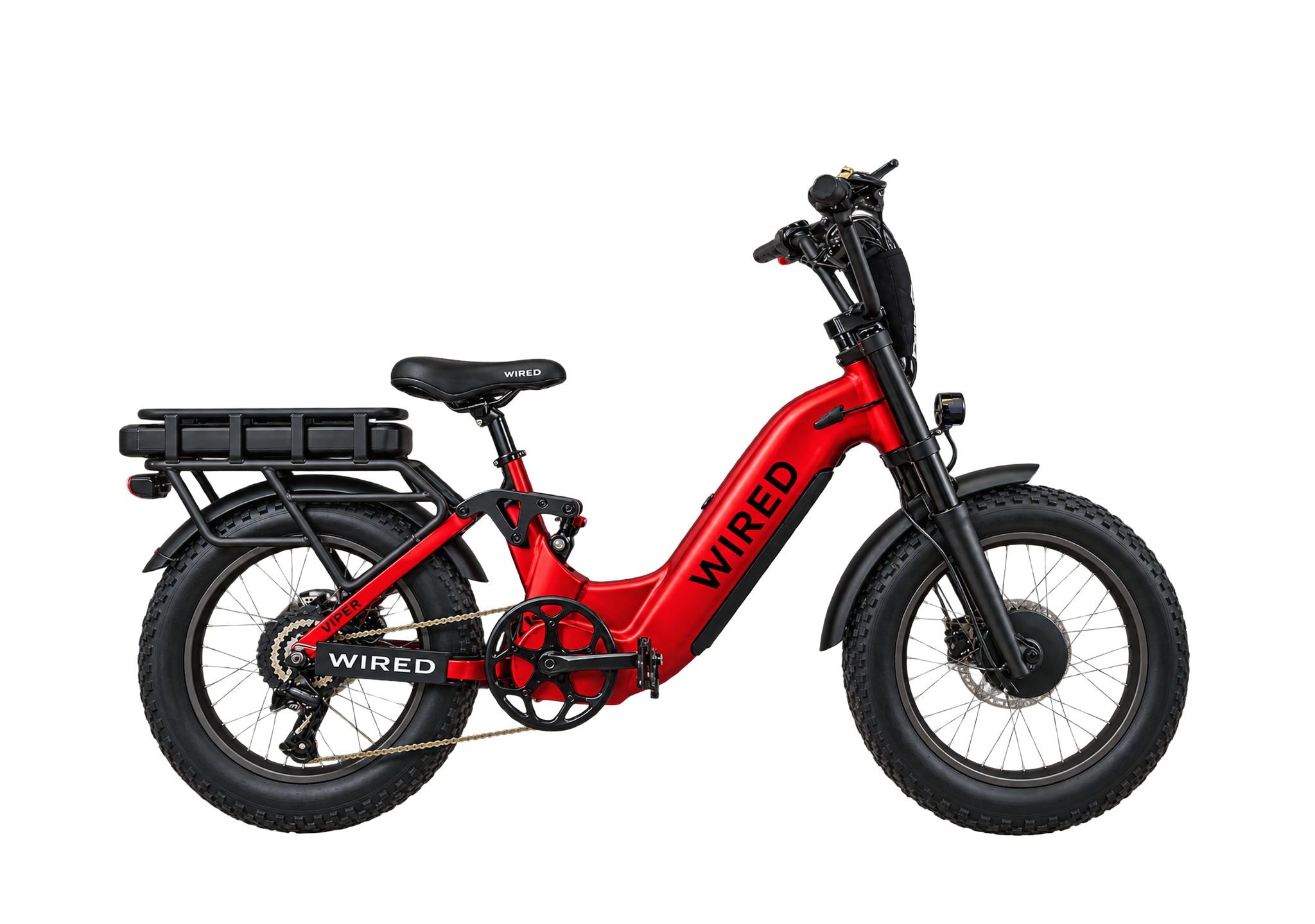

WIRED Viper

$3,699.00

Select Color

Quantity:

WIRED VIPER 72V AWD

DETAILED SPECS

MOTOR & PERFORMANCE

MOTOR

72v Dual motor (AWD). Combined peak output of 8000W and ~430Nm of torque. Rear Hentach steel plated geared hub motor (2000W nominal). Front Hentach steel plated geared hub motor (1500w nominal).
Wired Ebikes has sole exclusivity on the most powerful production geared hub motor in the world.

Title

TOP SPEED

50+ mph in unrestricted mode. By default, the bike is set to 20 mph max (Class 2). Top speed can be adjusted via display settings. Power Performance Bikes are for private property use only in many states. Check your local laws.

Title

RIDE MODES

Ships as Class 2 (20mph throttle + PAS). Configurable to Class 1 (PAS only), Class 3 (28mph PAS), or Unrestricted mode. Power Performance Bikes are for private property use only in many states. Check your local laws.

Title

BATTERY & ELECTRONICS

BATTERIES

72V 20Ah front + 72V 15Ah rear batteries (total ~35Ah). Samsung High Discharge 21700 lithium cells (50-S 21700) for reliable, long-life performance (2520Wh total).

Title

controller

Our exclusive dual Patriot System Controllers produce a combined output of over 110 amps.

  • Rear Patriot System Controller peaks at over 65 amps
  • Front Patriot System Controller peaks at over 45 amps
Title

Display

Full color customizable display screen. Select torque/cadence, class mode, power output, turn signal status, and much more.
USB phone charger conveniently located on power button cluster.

Title

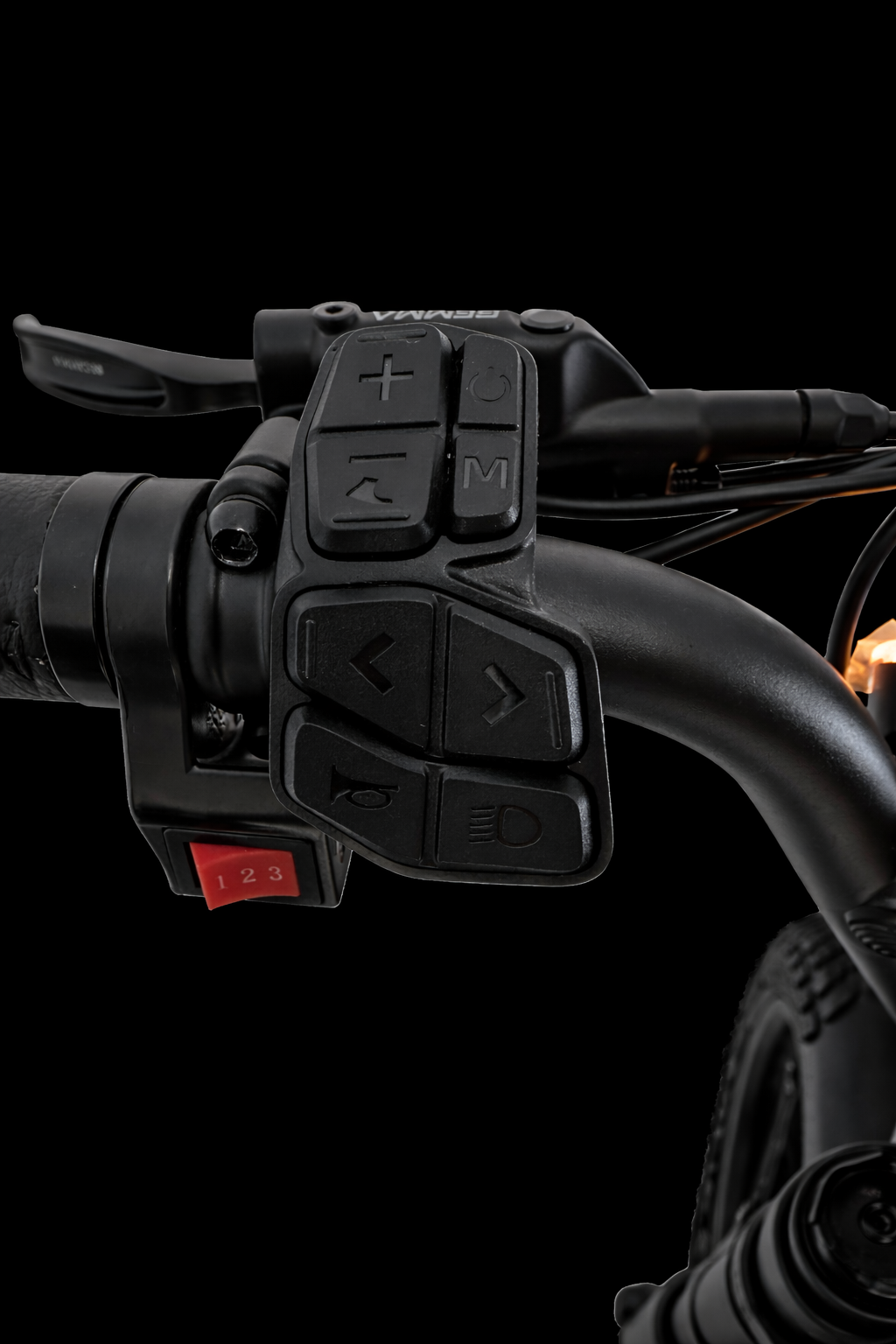

PEDAL ASSIST

Our unique system allows a vast array of customization:

  • Select Torque or Cadence Mode easily through display
  • Select the percentage of power for each level of assist;
  • Select how may levels of assist shown on display (1-5, 1-7, 1-9)
  • Cruise Control with the push of a button
Title

Throttle

Unique to Wired Ebikes, we now offer a completely customizable throttle. In the display settings, easily limit the power in which the throttle provides. Simply select the percentage that you are comfortable with!

Title

RANGE

Up to ~90 miles (PAS 1). Range depends on numerous factors including, but not limited to, terrain, rider weight, tire pressure and weather conditions.

Title

FRAME & COMPONENTS

DRIVETRAIN

7-speed Shimano gear system (56T dual sided front chainring, 11-34T rear freewheel). Lets you pedal effectively at various speeds; prevents “ghost pedaling."

Title

fRAME

6061 Aluminum Alloy with Full Suspension.

Step-Over frame design

Title

fork

EXSHO dual crown with 70mm of travel. Adjust for softness and rebound

Title

Tires

Innova 26x4 Fat Tires. Puncture resistant and rated for higher speeds.

Title

Chainring

Prowheel 56t with double chain cover. 170mm crank arm.

Title

Rear shock

DNM AO-8RC 190mm x 50mm with lockout.

Title

weight of bike

Total weight of bike with both batteries = 160lbs
Total weight of bike without batteries = 122lbs

Title

GEOMETRY
