WIRED SCOUT 72V

ride without limits

All-terrain power meets accessible versatility. Built with the same groundbreaking 72V performance as the Warrior, the Scout offers a step-thru frame that’s easy to mount and ideal for heavy-duty utility or adventures. Whether hauling gear, scouting trails, or exploring far beyond paved roads, this is the bike for riders who want high-powered performance without compromise.

5000W

PEAK POWER

45+ MPH

top speed

72V

DUAL BATTERY SYSTEM

~180Nm

high torque design

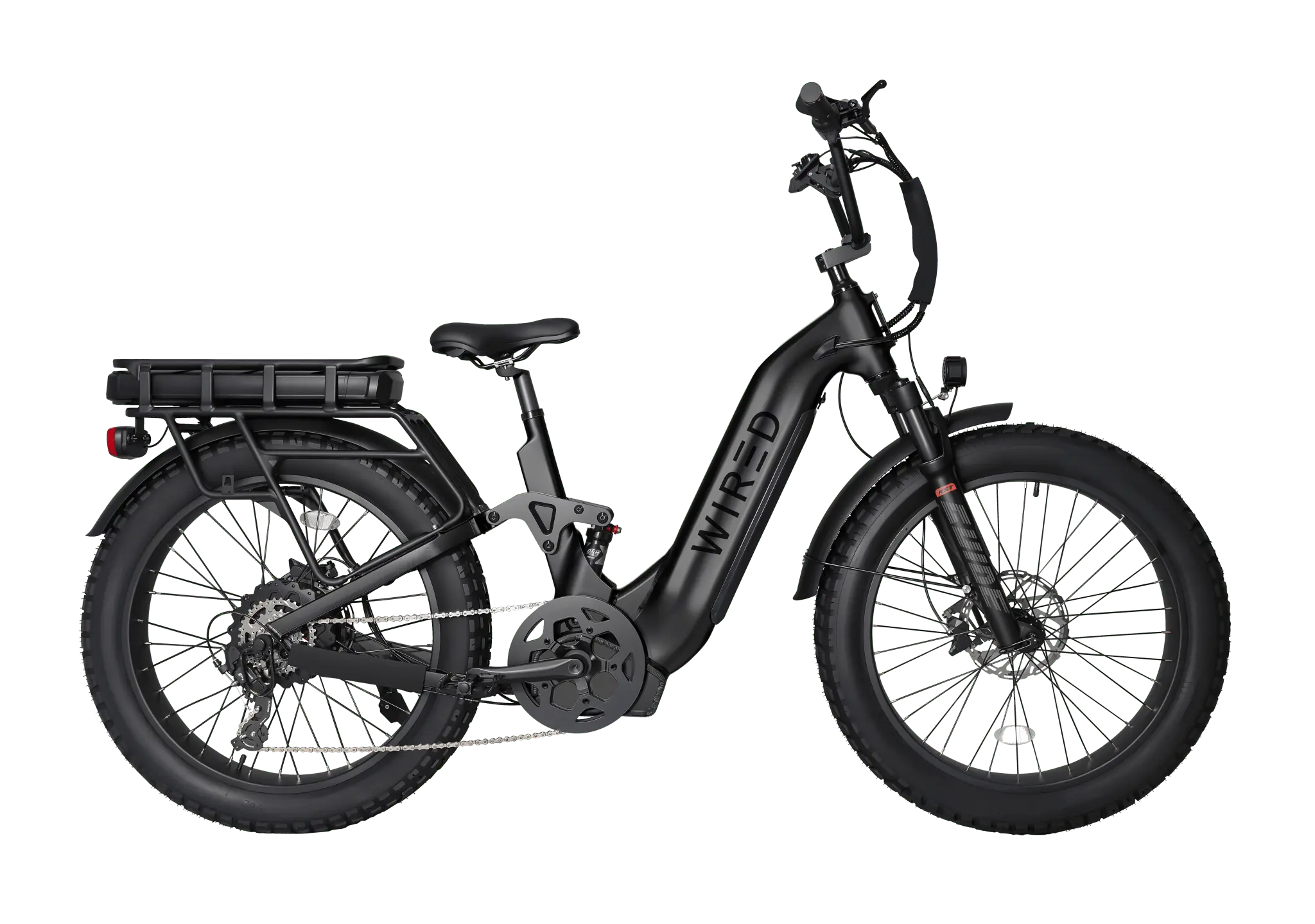

Wired Scout electric bike in Graphite - step-thru dual suspension ebike with 2000W Hengtai motor

FULLY CERTIFIED TO UL2849 & UL2271 STANDARDS

Wired Scout

$2,799.00

Select Color

Quantity:

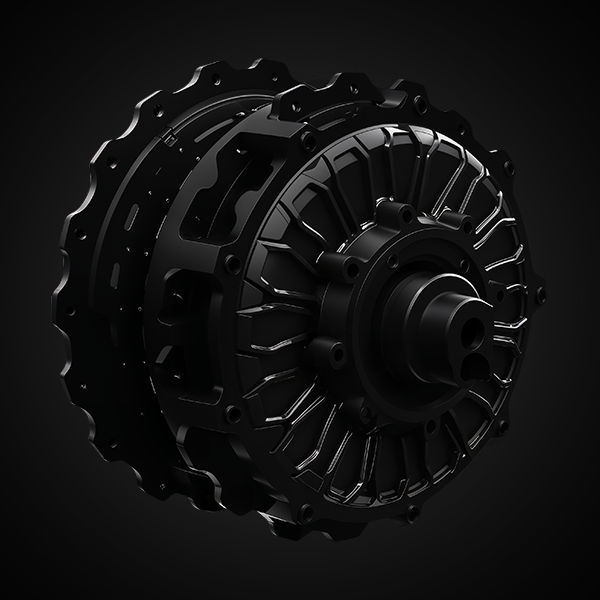

72V 2000W Rear Hub Motor

High-powered Hentach 72V motor outputs 5000W, 180Nm of torque and reaches speeds in excess of 45MPH. Motor is exclusive to Wired.

Full Suspension System

Advanced front fork and adjustable rear air shock absorb harsh terrain for stable, smooth rides. Set softness and rebound with ease.

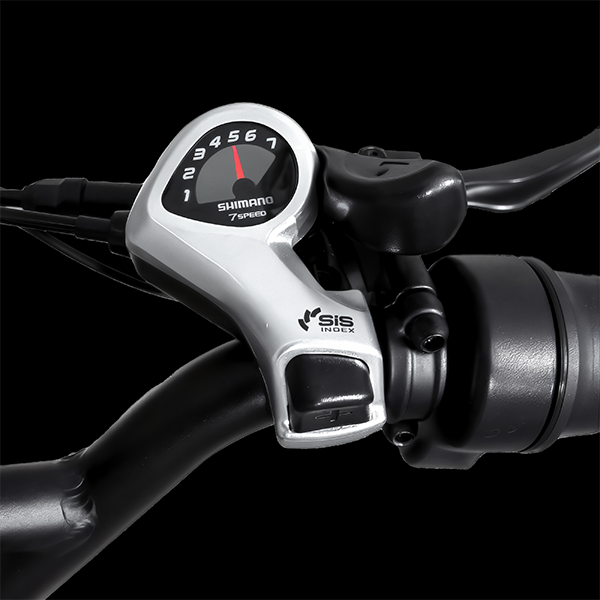

Shimano 7-Speed Drivetrain

Reliable Shimano gearing delivers smooth shifts and versatile power transfer, perfect for steep climbs or fast flats.

All-Terrain Fat Tires

26" x 4.0" rugged tires deliver traction and stability across sand, snow, mud, and pavement. Puncture resistant Innova tires rated for higher speeds.

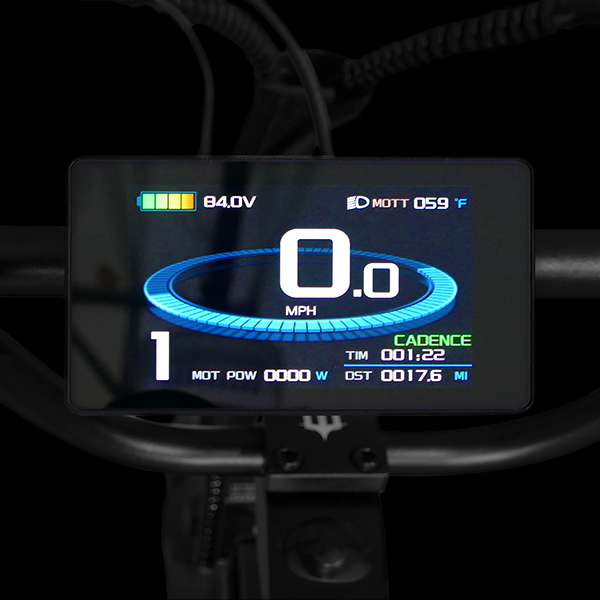

Programmable LCD Display

Easy-to-read color screen clearly shows speed, battery levels, and customizable riding modes. Torque/Cadence selectable.

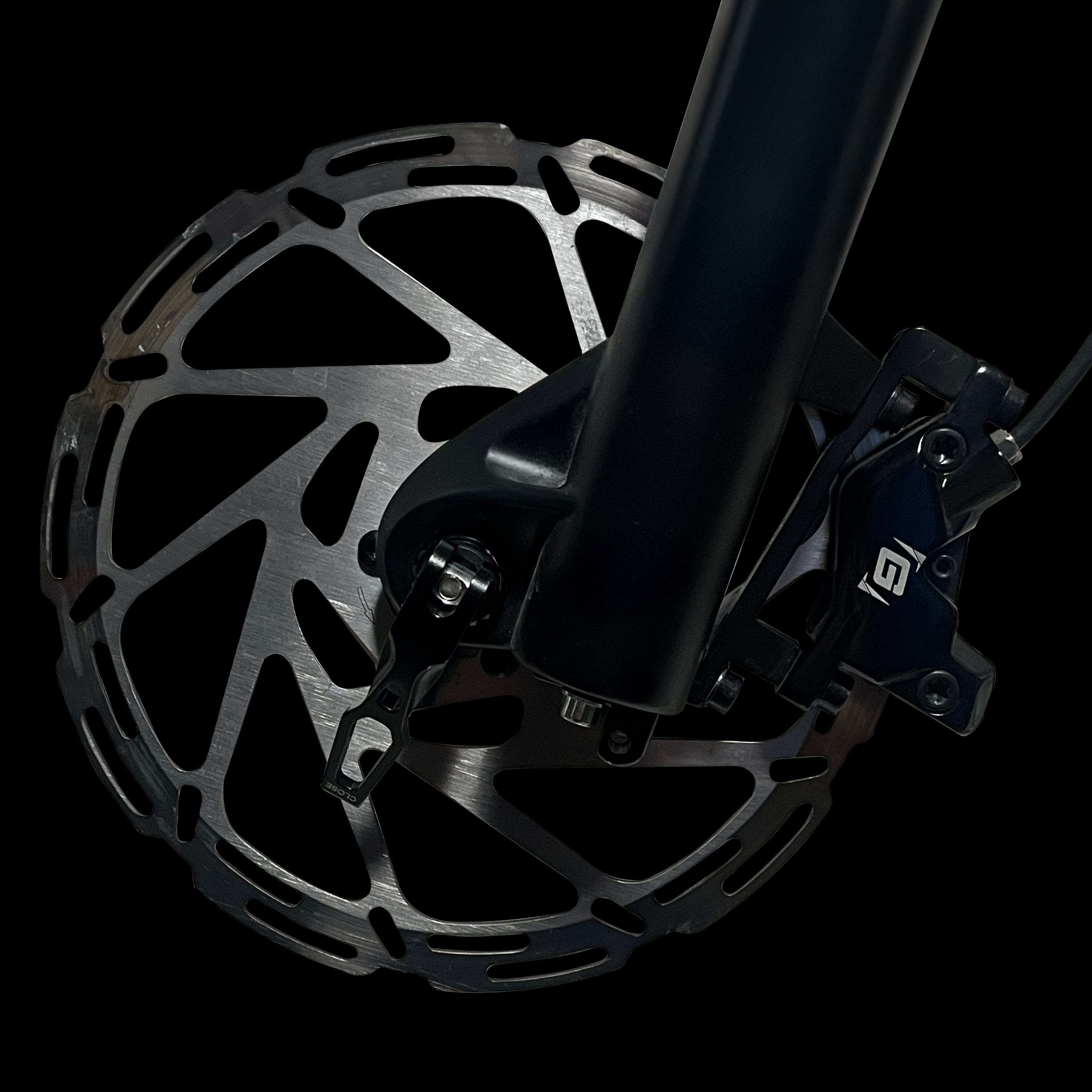

Heavy-Duty Hydraulic Brakes

4-piston Gemma hydraulic brakes with large 203mm rotors offer confident stopping power at high speeds. Be confident at any speed.

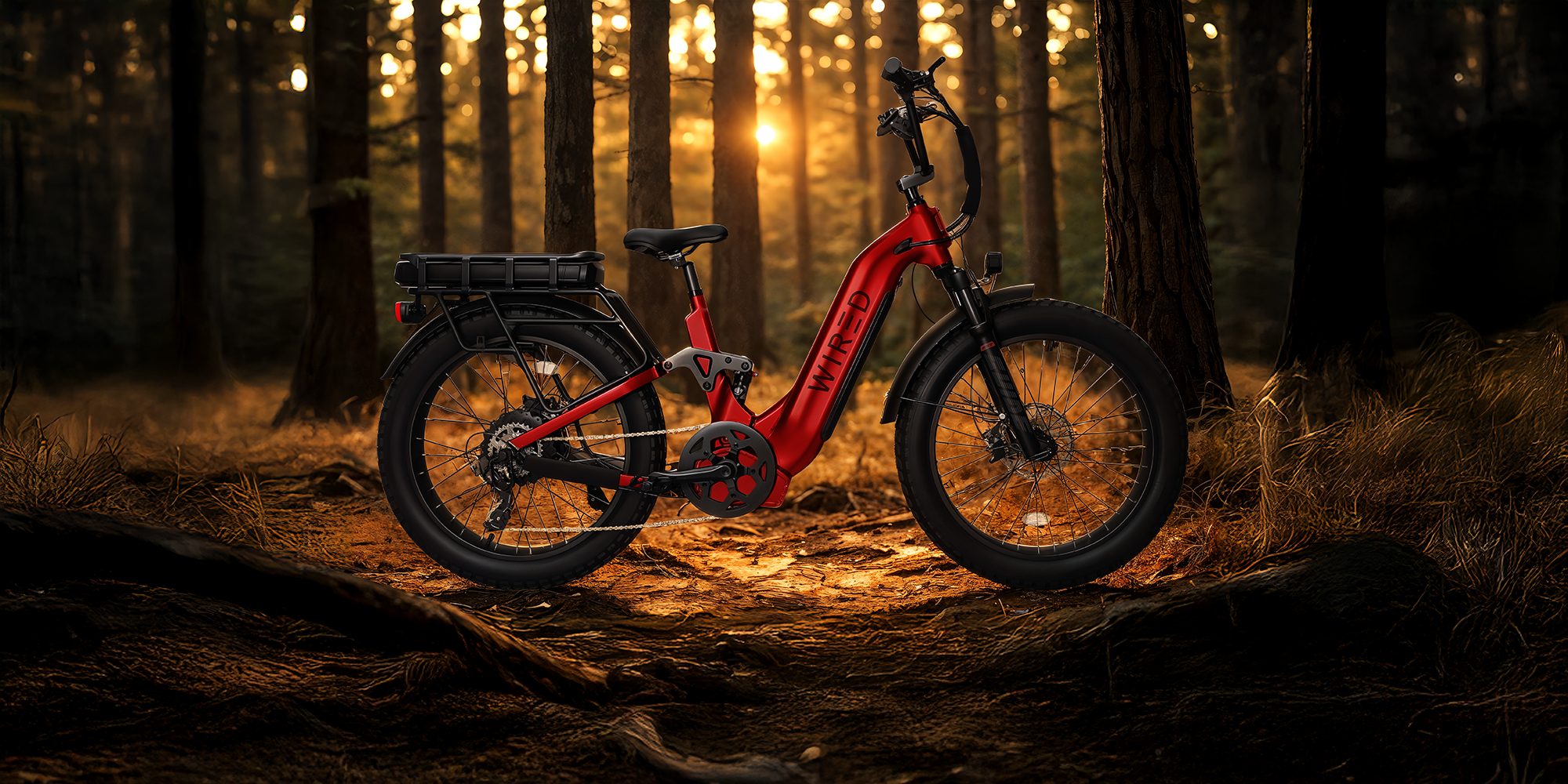

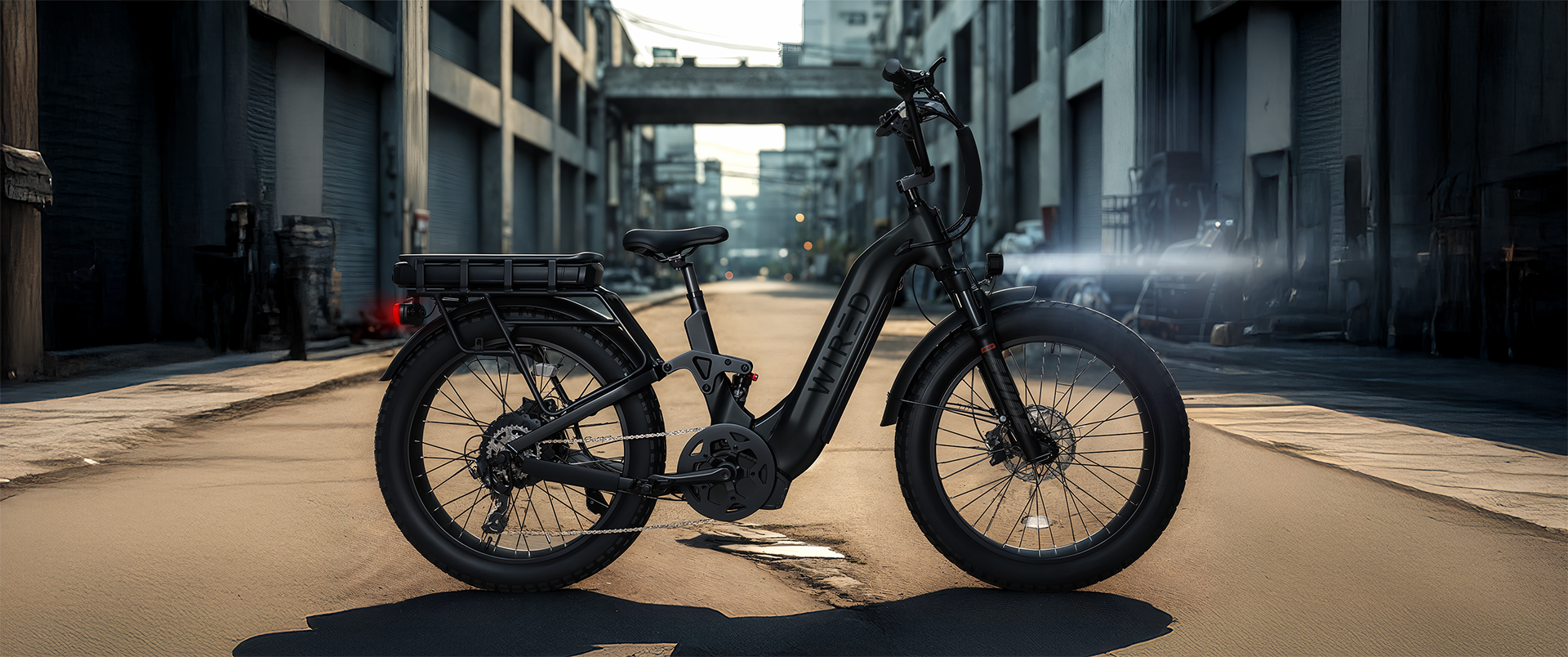

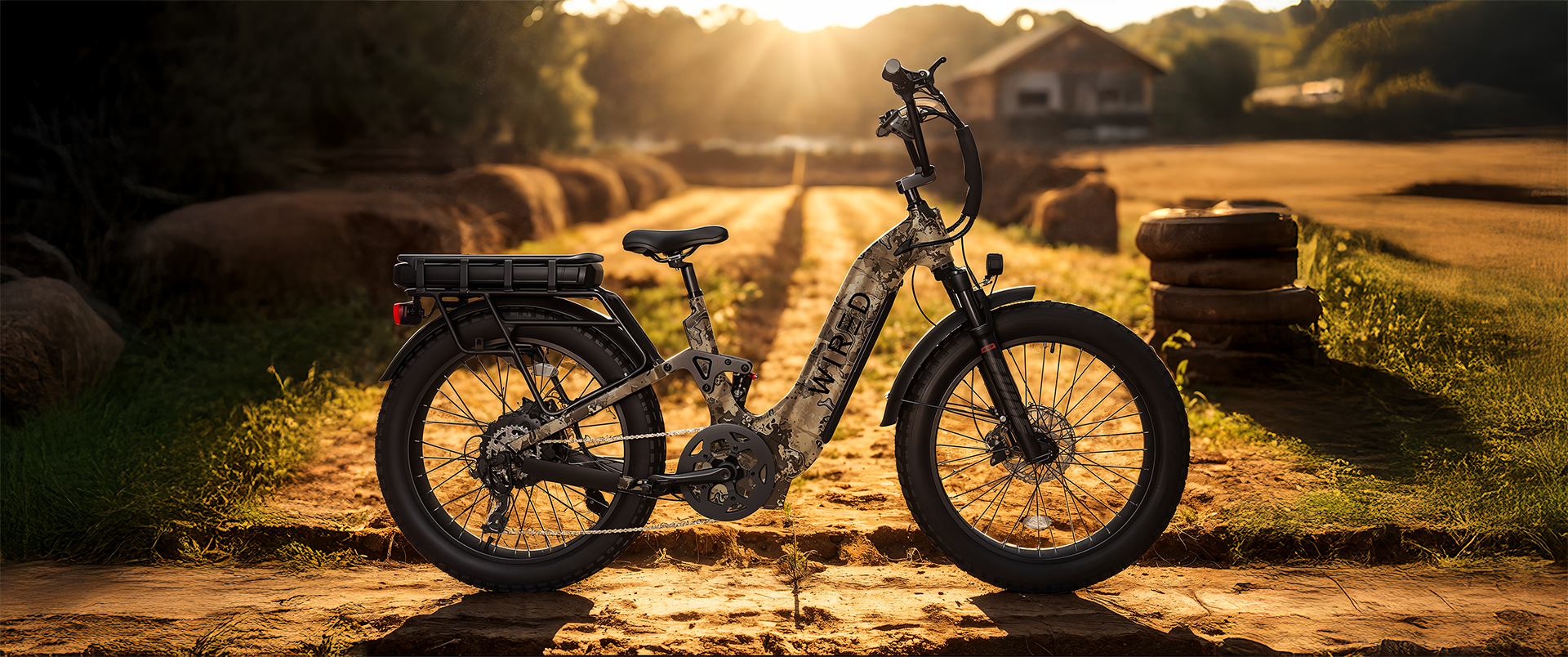

WIRED SCOUT
WHERE POWER and COMFORT MEET
Alt image
Alt image
Alt image
WIRED SCOUT 72V

DETAILED SPECS

MOTOR & PERFORMANCE
MOTOR
72V Hentach 2000W nominal brushless geared hub motor that produces a peak output of over 5000W and 180Nm of torque for incredible acceleration and climbing ability. Wired Ebikes has earned sole exclusivity on the most powerful geared hub motor available.
Title
TOP SPEED
45+ mph in unrestricted mode (for off-road only). By default, the bike is set to 20 mph max (Class 2). Top speed can be adjusted via display settings. Power Performance Bikes are prohibited on public roads in many states. Check your local laws.
Title
RIDE MODES
Ships as Class 2 (20mph throttle + PAS). Configurable to Class 1 (PAS only) or Class 3 (28mph PAS). Unrestricted mode available for private property use only. Power Performance Bikes are prohbited on public roads in many states. Check your local laws.
Title
BATTERY & ELECTRONICS
BATTERIES
72V 20Ah front + 72V 15Ah rear batteries (total ~35Ah). Samsung High Discharge 21700 lithium cells (50-S 21700) for reliable, long-life performance (2520Wh total)
Title
controller
Our exclusive Patriot System Controller produces an output of over 65 amps and 5000W
Title
Display
Full color customizable display screen. Select class mode, power output and much more.
USB phone charger conveniently located on power button cluster
Title
PEDAL ASSIST

Our unique system allows for a vast array of customization:

  • Select Torque or Cadence Mode easily through display
  • Select the percentage of power for each level of assist;
  • Select how may levels of assist shown on display (1-5, 1-7, 1-9)
  • Cruise Control with the push of a button
Title
Throttle
Unique to Wired Ebikes, we now offer a completely customizable throttle. In the display settings, easily limit the power in which the throttle provides. Simply select the percentage that you are comfortable with!
Title
RANGE
Up to ~90 miles (PAS 1). Range depends on numerous factors including, but not limited to, terrain, rider weight, tire pressure and weather conditions
Title
FRAME & COMPONENTS
DRIVETRAIN
7-speed Shimano gear system (56T dual sided front chainring, 11-34T rear freewheel). Lets you pedal effectively at various speeds; you won’t “ghost pedal” at higher speeds
Title
fRAME
6061 Aluminum Alloy with Full Suspension
Step-Thru Design
Title

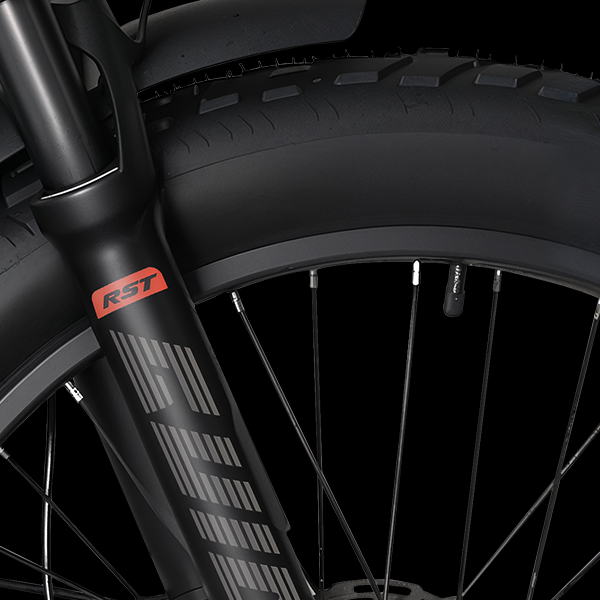

fork
RST Guide with 75mm of travel. Thru-Axle quick release for safety and convenience
Title
Tires
Innova 26x4 Fat Tires. Puncture resistant and rated for higher speeds
Title
Chainring
Prowheel 56t with double chain cover. 170mm crank arm
Title
Rear shock
DNM AO-8RC 190mm x 50mm with lockout
Title
weight of bike
Total weight of bike with both batteries = 145lbs
Total weight of bike without batteries = 107lbs
Title

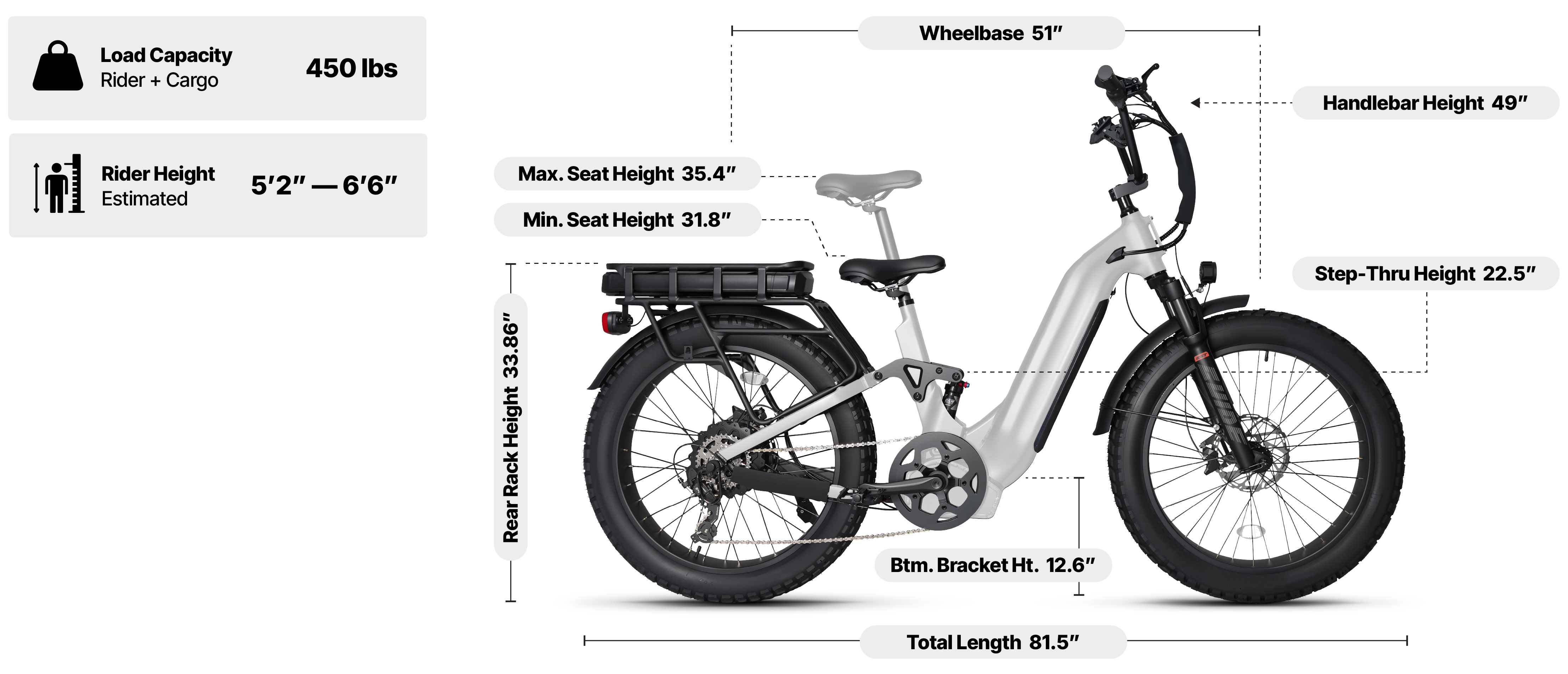

GEOMETRY
