WIRED RAVEN 72V

WIRED viper 72V

20" Nimble Performance

20" Nimble Performance

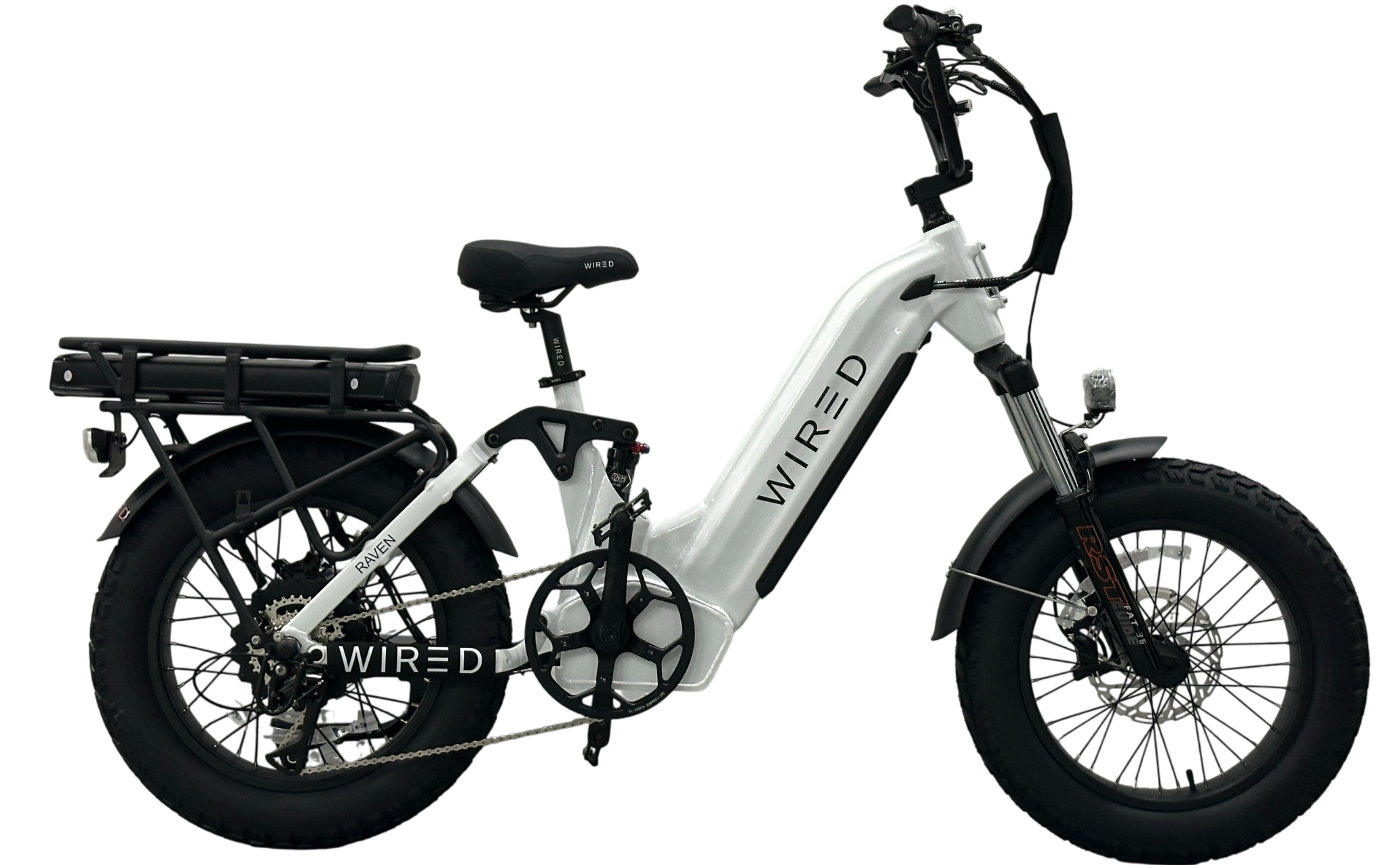

Compact, powerful, and built for adventure — the all-new WIRED Raven delivers extreme 72V performance in a nimble 20” platform. Featuring dual batteries, a 5000W geared hub motor, and an incredible 210 N.m of torque, the Raven combines brutal acceleration with long-range capability and all-terrain versatility.The Raven also introduces an industry-first fully programmable torque sensor with 1–10 sensitivity adjustment levels, allowing riders to customize pedal response for the perfect ride feel. With integrated turn signals, premium dual suspension, and aggressive compact handling, the Raven is engineered for riders who want serious power, comfort, and customization in one high-performance package.

5000w

PEAK POWER

45+ MPH

Top speed

72V

DUAL BATTERY SYSTEM

210Nm

 high torque
WIRED Raven

BATTERIES CERTIFIED TO UL2271 STANDARDS

WIRED Raven

$2,799.00
$2,499.00

Limited Time Only

Select Color

Quantity:

All-In-One Display Cluster

Easily access power, PAS level, lights, turn signals, hazards, horn and more in a convenient all-in-one thumb remote for a sleek and simplistic look.

Ultra Bright Front Turn Signals

Integrated front LED turn signals cut through traffic with unmistakable visibility, ensuring your intentions are seen instantly....day or night

Integrated Rear Turn Signals

Integrated rear LED turn signals increase visibility from behind, clearly communicating your movements to traffic when it matters most.

Programmable LCD Display

Easy-to-read color screen clearly shows speed, battery levels, turn signal status, and customizable riding modes. Torque/Cadence selectable.

Full Suspension System

Advanced front fork and adjustable rear air shock absorb harsh terrain for stable, smooth rides. Set softness and rebound with ease.

Shimano 7-Speed Drivetrain

Reliable Shimano gearing delivers smooth shifts and versatile power transfer, perfect for steep climbs or fast flats.

All-Terrain Fat Tires

20" x 4.0" rugged tires deliver traction and stability across sand, snow, mud, and pavement. Puncture resistant Innova tires rated for higher speeds.

72V 2000W Rear Hub Motor

Our exclusive nominal 2000W Hentach motor provides 210Nm of torque and can achieve speeds greater than 45 MPH while peaking at over 5000W.

Heavy-Duty Hydraulic Brakes

4-piston Gemma hydraulic brakes with large 203mm rotors offer confident stopping power at high speeds. Be confident at any speed.

All-In-One Display Cluster

Easily access power, PAS level, lights, turn signals, hazards, horn and more in a convenient all-in-one thumb remote for a sleek and simplistic look.

Ultra Bright Front Turn Signals

Integrated front LED turn signals cut through traffic with unmistakable visibility, ensuring your intentions are seen instantly....day or night

Integrated Rear Turn Signals

Integrated rear LED turn signals increase visibility from behind, clearly communicating your movements to traffic when it matters most.

Programmable LCD Display

Easy-to-read color screen clearly shows speed, battery levels, turn signal status, and customizable riding modes. Torque/Cadence selectable.

Full Suspension System

Advanced front fork and adjustable rear air shock absorb harsh terrain for stable, smooth rides. Set softness and rebound with ease.

Shimano 7-Speed Drivetrain

Reliable Shimano gearing delivers smooth shifts and versatile power transfer, perfect for steep climbs or fast flats.

All-Terrain Fat Tires

20" x 4.0" rugged tires deliver traction and stability across sand, snow, mud, and pavement. Puncture resistant Innova tires rated for higher speeds.

72V 2000W Rear Hub Motor

Our exclusive nominal 2000W Hentach motor provides 210Nm of torque and can achieve speeds greater than 45 MPH while peaking at over 5000W.

Heavy-Duty Hydraulic Brakes

4-piston Gemma hydraulic brakes with large 203mm rotors offer confident stopping power at high speeds. Be confident at any speed.

All-In-One Display Cluster

Easily access power, PAS level, lights, turn signals, hazards, horn and more in a convenient all-in-one thumb remote for a sleek and simplistic look.

Ultra Bright Front Turn Signals

Integrated front LED turn signals cut through traffic with unmistakable visibility, ensuring your intentions are seen instantly....day or night

Integrated Rear Turn Signals

Integrated rear LED turn signals increase visibility from behind, clearly communicating your movements to traffic when it matters most.

Programmable LCD Display

Easy-to-read color screen clearly shows speed, battery levels, turn signal status, and customizable riding modes. Torque/Cadence selectable.

Full Suspension System

Advanced front fork and adjustable rear air shock absorb harsh terrain for stable, smooth rides. Set softness and rebound with ease.

Shimano 7-Speed Drivetrain

Reliable Shimano gearing delivers smooth shifts and versatile power transfer, perfect for steep climbs or fast flats.

All-Terrain Fat Tires

20" x 4.0" rugged tires deliver traction and stability across sand, snow, mud, and pavement. Puncture resistant Innova tires rated for higher speeds.

72V 2000W Rear Hub Motor

Our exclusive nominal 2000W Hentach motor provides 210Nm of torque and can achieve speeds greater than 45 MPH while peaking at over 5000W.

Heavy-Duty Hydraulic Brakes

4-piston Gemma hydraulic brakes with large 203mm rotors offer confident stopping power at high speeds. Be confident at any speed.

WIRED VIPER 72V AWD

DETAILED SPECS

MOTOR & PERFORMANCE

MOTOR

72v Single Rear Motor. Peak output of 5000W and ~210Nm of torque. Rear Hentach steel plated geared hub motor (2000W nominal).
Wired Ebikes has sole exclusivity on the most powerful production geared hub motor in the world.
Title

TOP SPEED

45+ mph in unrestricted mode. By default, the bike is set to 20 mph max (Class 2). Top speed can be adjusted via display settings. Power Performance Bikes are for private property use only in many states. Check your local laws.
Title

RIDE MODES

Ships as Class 2 (20mph throttle + PAS). Configurable to Class 1 (PAS only), Class 3 (28mph PAS), or Unrestricted mode. Power Performance Bikes are for private property use only in many states. Check your local laws.
Title

BATTERY & ELECTRONICS

BATTERIES

72V 20Ah front + 72V 15Ah rear batteries (total ~35Ah). Samsung High Discharge 21700 lithium cells (50-S 21700) for reliable, long-life performance (2520Wh total). CERTIFIED TO UL2271 STANDARDS
Title

turn signals & Horn

Extremely bright front and rear amber turn signals come standard. Remote cluster easily allows operation of the signals, hazards and a horn.
Title

controller

Our exclusive Patriot System Controllers produce a peak output of over 65 amps.
Title

Display

Full color customizable display screen. Select torque/cadence, class mode, power output, turn signal status, and much more.
USB-C phone charger conveniently located on power button cluster. 1-10 torque sensitivity setting.
Title

PEDAL ASSIST

Our unique system allows a vast array of customization:

  • Select Torque or Cadence Mode easily through display (Torque sensitivity 1-10)
  • Select the percentage of power for each level of assist;
  • Select how may levels of assist shown on display (1-5, 1-7, 1-9)
  • Cruise Control with the push of a button
Title

Throttle

Unique to Wired Ebikes, we now offer a completely customizable throttle. In the display settings, easily limit the power in which the throttle provides. Simply select the percentage that you are comfortable with!
Title

RANGE

Up to ~90 miles (PAS 1). Range depends on numerous factors including, but not limited to, terrain, rider weight, tire pressure and weather conditions.
Title

FRAME & COMPONENTS

DRIVETRAIN

7-speed Shimano gear system (56T dual sided front chainring, 11-34T rear freewheel). Lets you pedal effectively at various speeds; prevents “ghost pedaling."
Title

fRAME

6061 Aluminum Alloy with Full Suspension.

Step-Thru frame design
Title

fork

RST Guide with 120mm of travel. Thru-Axle quick release for safety and convenience.
Title

Tires

Exclusive branded Black Diamond 20 x 4 Fat Tires. Puncture resistant and rated for higher speeds.
Title

Chainring

Prowheel 56t with double chain cover. 170mm crank arm.
Title

Rear shock

DNM AO-8RC 190mm x 50mm with lockout.
Title

weight of bike

Total weight of bike with both batteries = 142lbs
Total weight of bike without batteries = 104lbs
Title

GEOMETRY
